3D Toy VRA · XM-5000 · Series 5

VRA System: 3D Toy (XM-5000 - Series 5)

VRA System: 3D Toy (XM-5000 - Series 5)

$2,095.00 USD
$2,095.00 USD
Sale Sold out
Shipping calculated at checkout.

Light, motion, sound.

System
Frequency
  • 90-Day Trial
  • 3-Year Warranty
  • No restocking fees

You get a short window with a toddler before the head turns stop. The 3D Toy VRA gives you a physical reinforcer that lights up, moves, and makes sound, with every setting on a remote in your hand. When a child starts to drift, change the pattern, the sound, or the character and keep testing.

The system ships as a complete left-and-right pair with the remote, receivers, and cables. Mount the units near your sound field speakers and plug them in. That is the install. No computer, no software, and no calibration.

Who it fits

•    Clinics that want a physical, three-dimensional reinforcer the child can watch move.

•    Buyers who want the lowest complete-system price in the Pehratek line.

•    Booths where an 11-inch box fits better than a monitor.

•    Teams that want to swap characters as patient interest changes.

What you control from the remote

•    10 sounds, 3 movements, 5 colored LED patterns, and a bright white backlight, in any combination.

•    A timed ON interval, or ALL-ON for distraction mode.

•    Left, right, and an optional center unit, all from the same 8-button remote. LEDs on the remote show what you selected.

Make it yours

Each unit holds two characters on magnetic bases. Every system includes a customization kit so you can mount a toy the child already loves. Extra character sets are sold separately, so you can keep a few in reserve for the child who has seen the regulars.

Choose your configuration

•    Standalone: left and right units, remote, receivers, cables.

•    System C: adds the lighted Duck center.

•    System B: adds the Dog center with lights, sound, and movement.

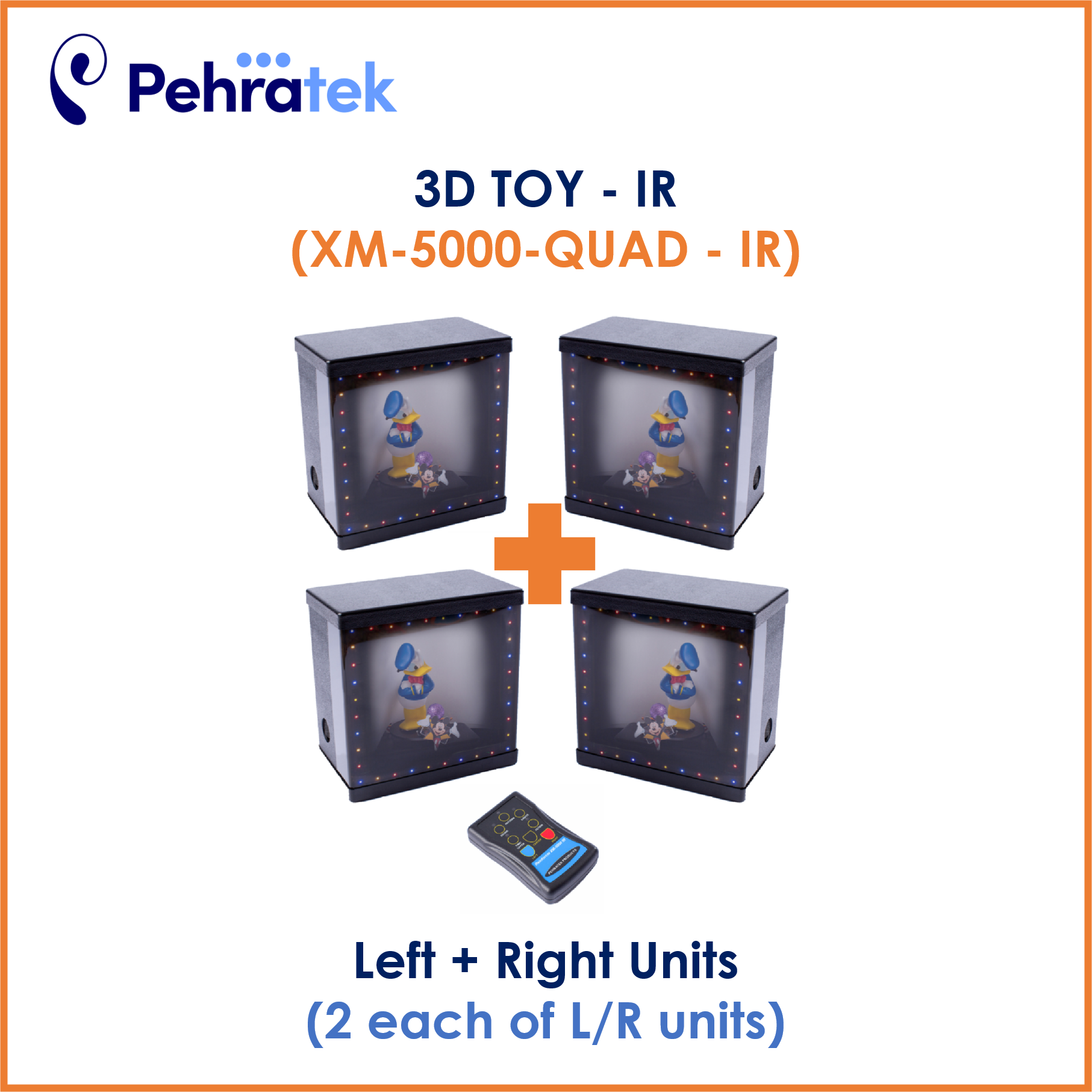

•    Quad: two left and two right units on one remote.

•    Single Toy Unit: one unit, for a one-sided setup or to add to a system you own.



Pick IR or RF control on this page. IR uses line of sight from the remote to the receiver and is not affected by nearby radio devices. RF needs no line of sight and offers four channels. Either one can be changed later with a conversion kit.



Every system includes a 90-day trial, no restocking fee, and a 3-year warranty. Need a purchase order instead of a cart? Send it to info@pehratek.com.

View full details

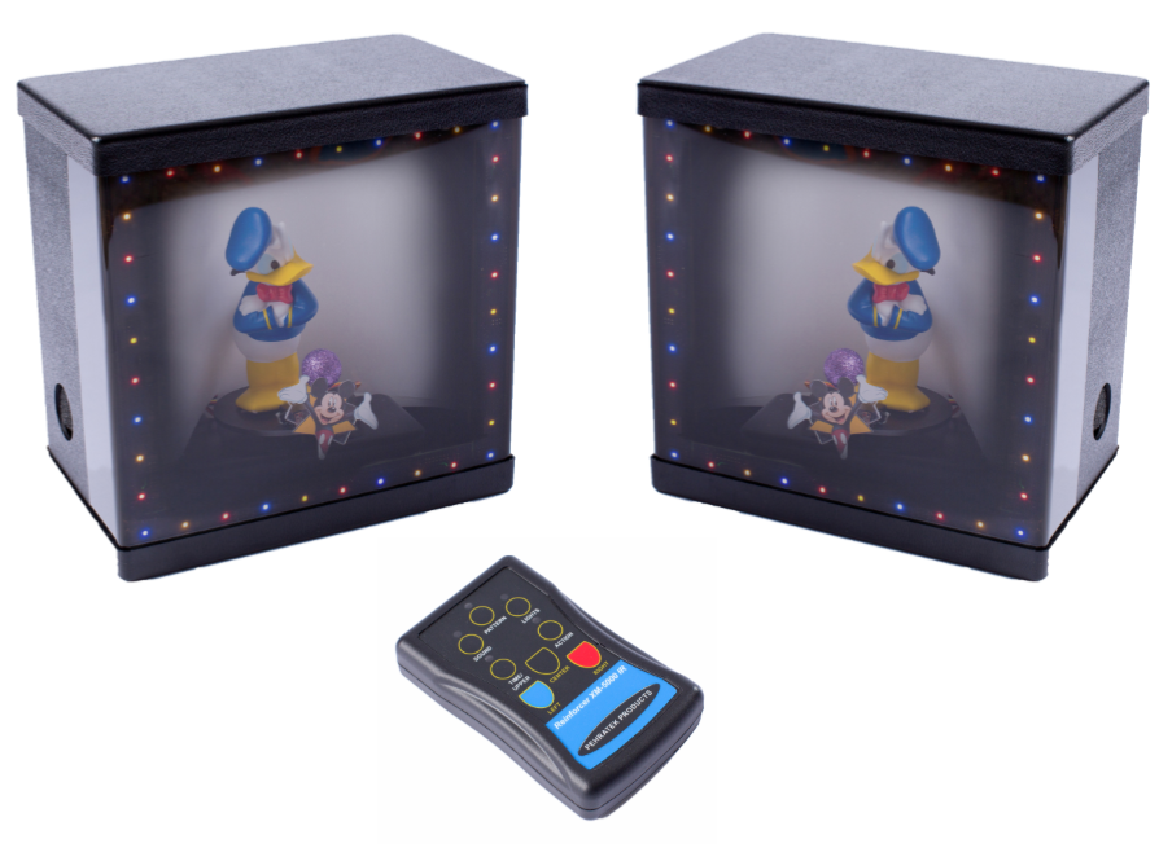

What's in the box

  • Left and right 3D Toy units
  • 8-button wireless remote
  • Receiver or IR sensors
  • Toy customization kit
  • Power supplies
  • Cables and mounting hardware
  • Installation guide

What each setup includes

Every option below uses the same remote and the same toy units. The choice is how many positions you want lit up.

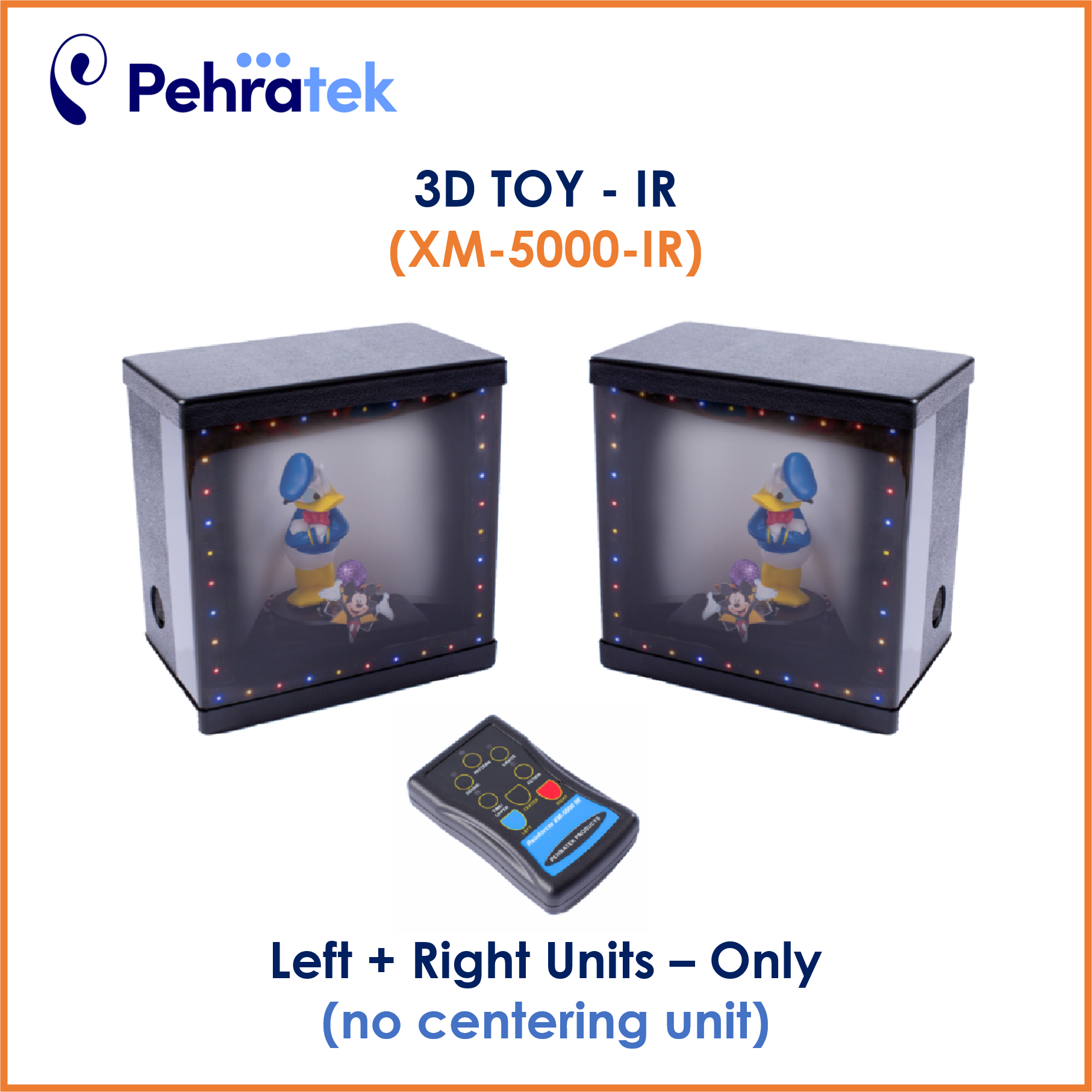

Standalone
Left and right 3D Toy units. The complete two-position setup most clinics start with.

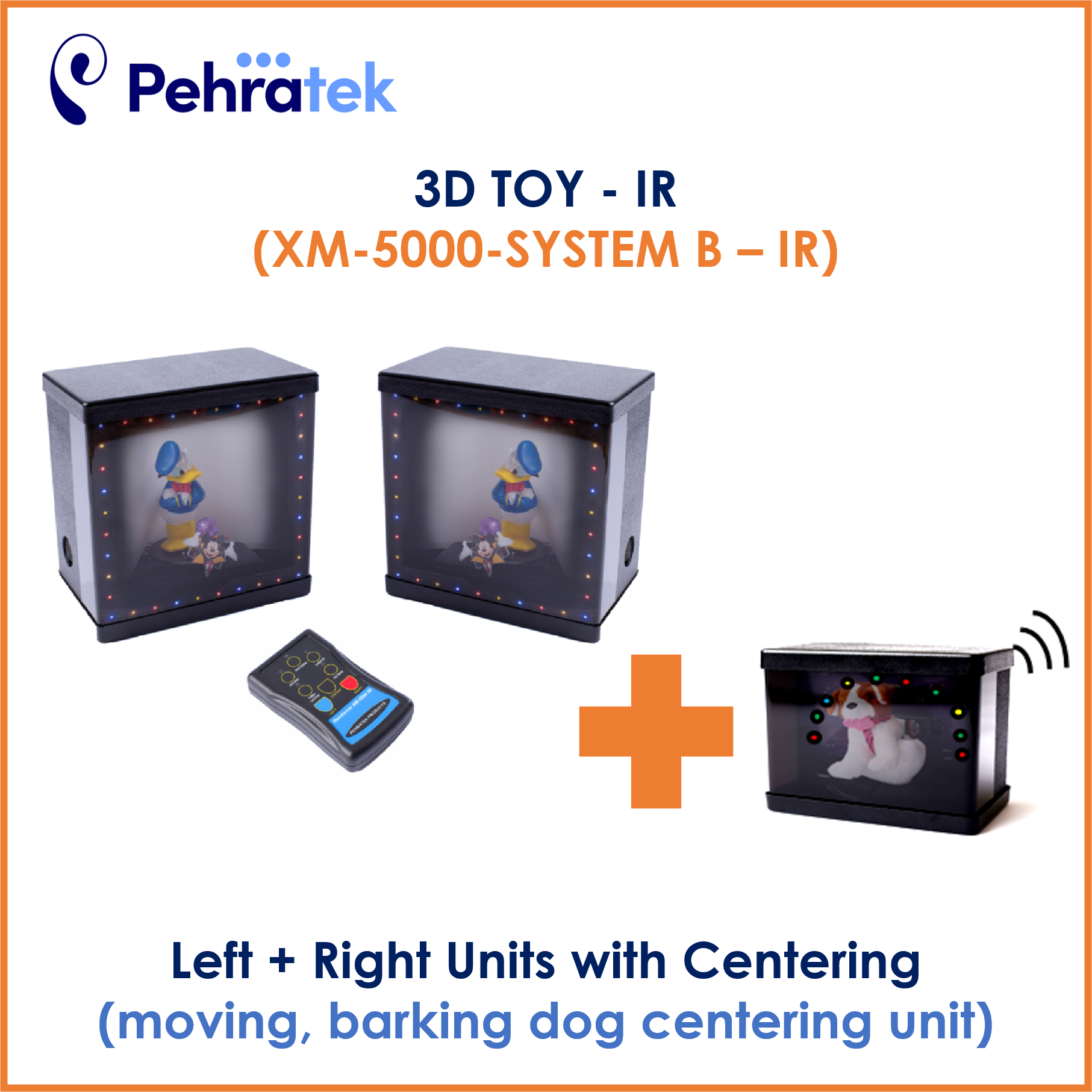

System B (with Dog Center)
Adds the animated dog centering unit at center: lights, sound, and motion.

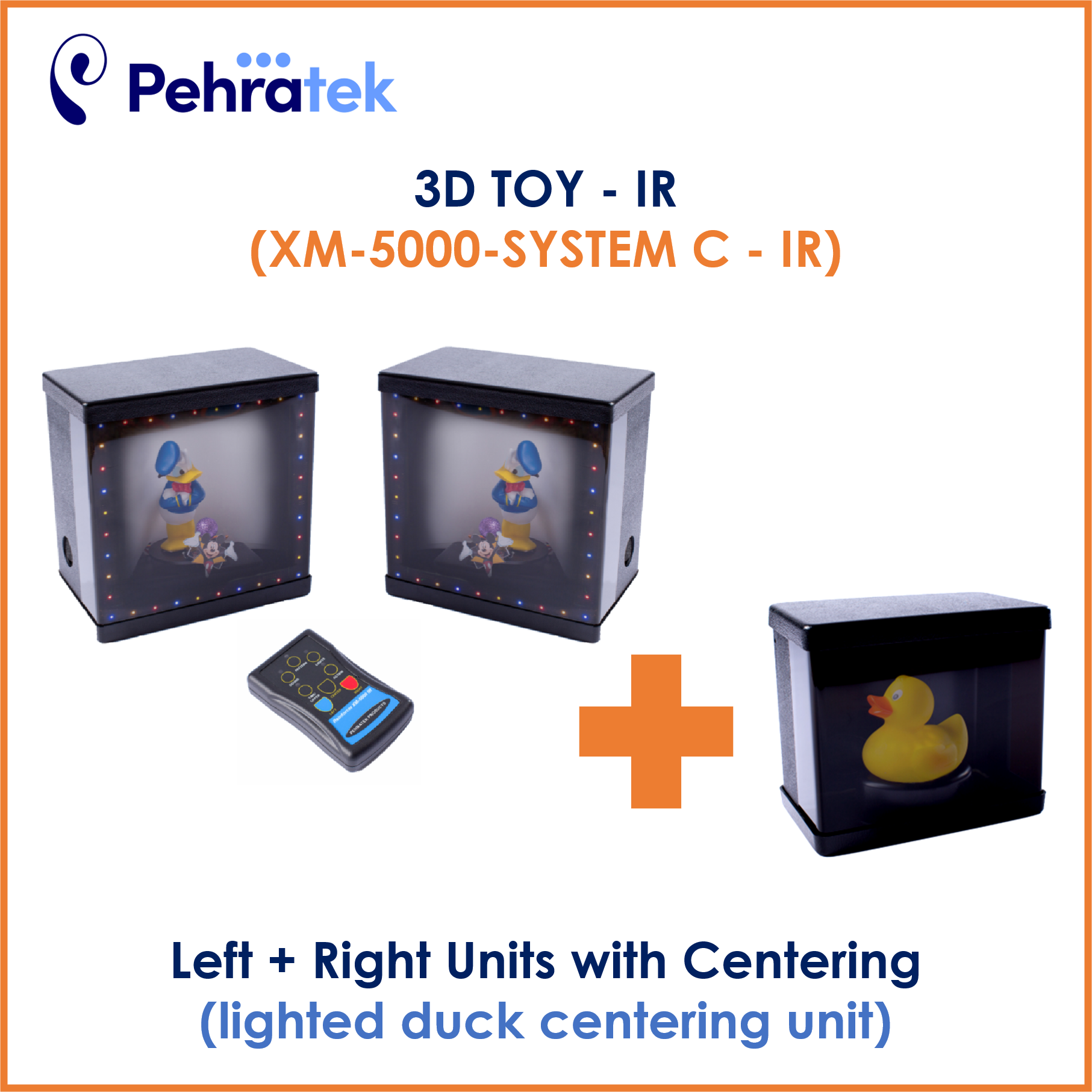

System C (with Duck Center)
Adds the lighted duck centering unit at center.
Quad 4-Box System (2L / 2R)
Four toy units, two on each side, for booths that need more than one reinforcer per position.
Single Toy Unit
One unit on its own, for adding a position or replacing a unit you already run.

Every setup runs on the same remote, so you can add a position or a centering unit later without replacing anything.

Key specs

Reinforcement
Motion, light, and sound modes, usable together or separately
Unit size
11"H x 11"W x 6"D per unit

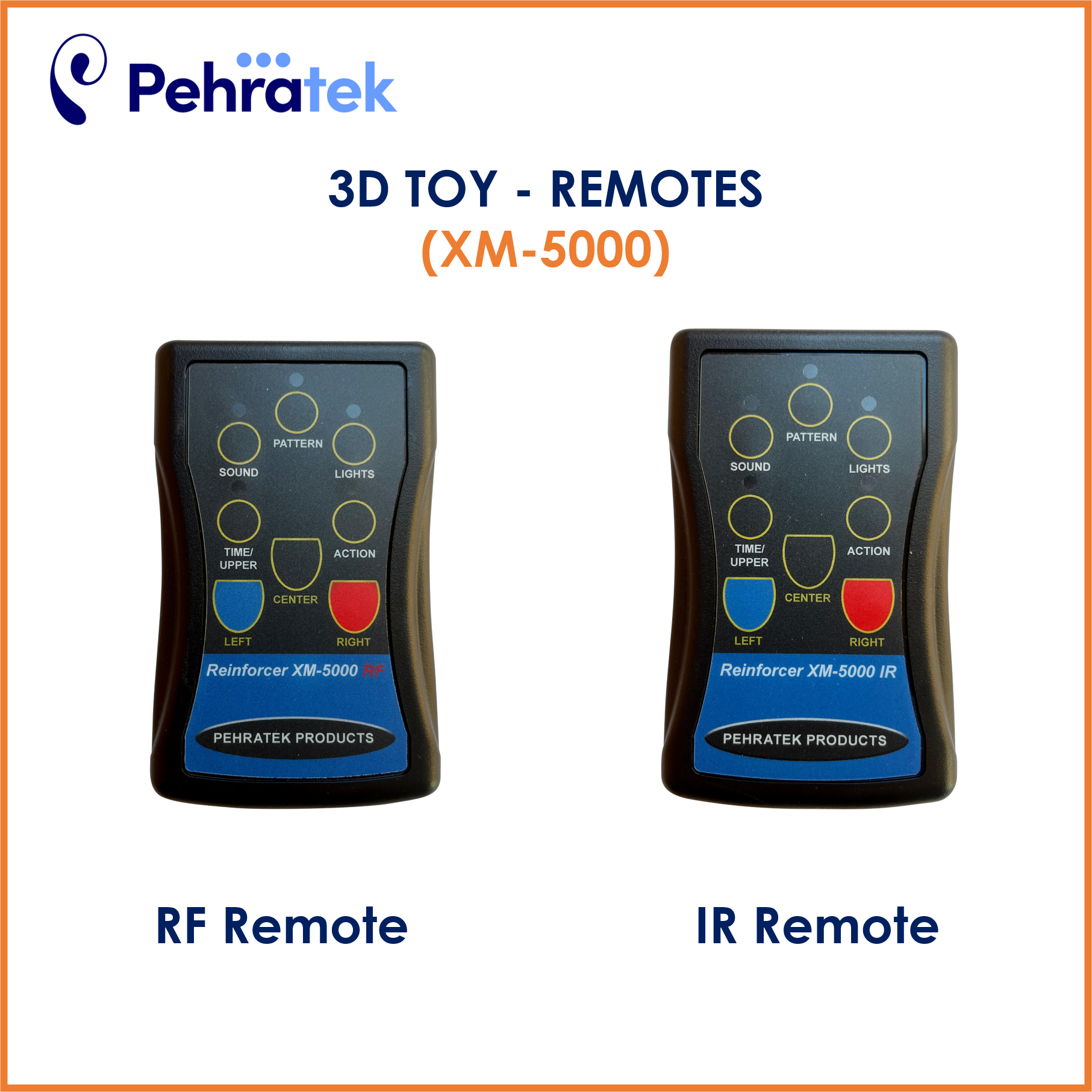

Remote
8-button wireless SMART remote, controls every unit in the room
Signal
IR (line of sight) or RF (4 channels), field-convertible either way
Audiometer
Works with any audiometer. No computer and no software
Warranty
3 years, the longest in VRA, with 90-day returns

Want video reinforcement too?

DualStim puts an animated toy and an HD video screen at both test positions, so you can switch the moment a child loses interest. From $5,995 complete.

See DualStimCompare all three

XM-5000 questions

  • Will it work with our existing audiometer?

    Yes. The XM-5000 runs independently of the audiometer using the Pehratek remote, so it works with any audiometer, and there is no computer or software to install.

  • Can we change the toys?

    Yes. Every system includes a customization kit, and swapping a figure takes about two minutes with no tools and no recalibration. Replacement sets start at 49 dollars.

  • How hard is installation?

    Most clinics mount and cable a system in an afternoon. Everything needed is in the box, and our Texas-based team walks you through it by phone or video if you want company.

  • IR or RF: which should we choose?

    IR is included and works on line of sight. RF adds 100 dollars, uses four channels, and suits rooms where the remote will not always have a clear path to the units. Systems are field-convertible either way.

  • Can we add a centering unit later?

    Yes. Centering units are sold separately and run on the remote you already own, so you can add one at any point without replacing the system.

All answers on the FAQ page

Ordering, shipping, compatibility, installation, the trial, and support.

Read the full FAQ

Test the XM-5000 in your booth for 90 days.

Pick your setupSee the 90-day guarantee

Full refund if returned within 90 days. No restocking fees.
